Description

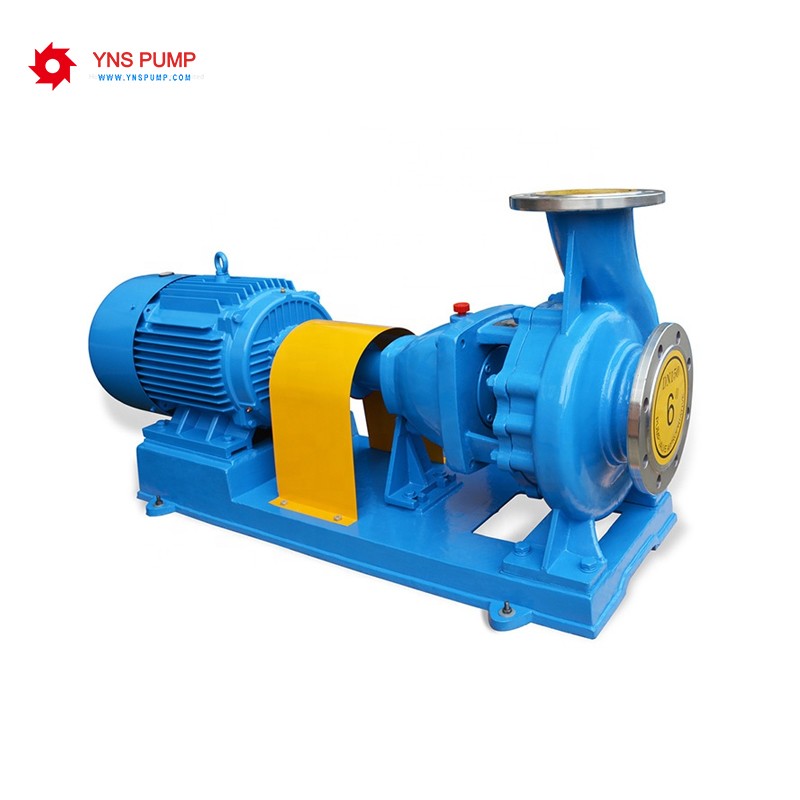

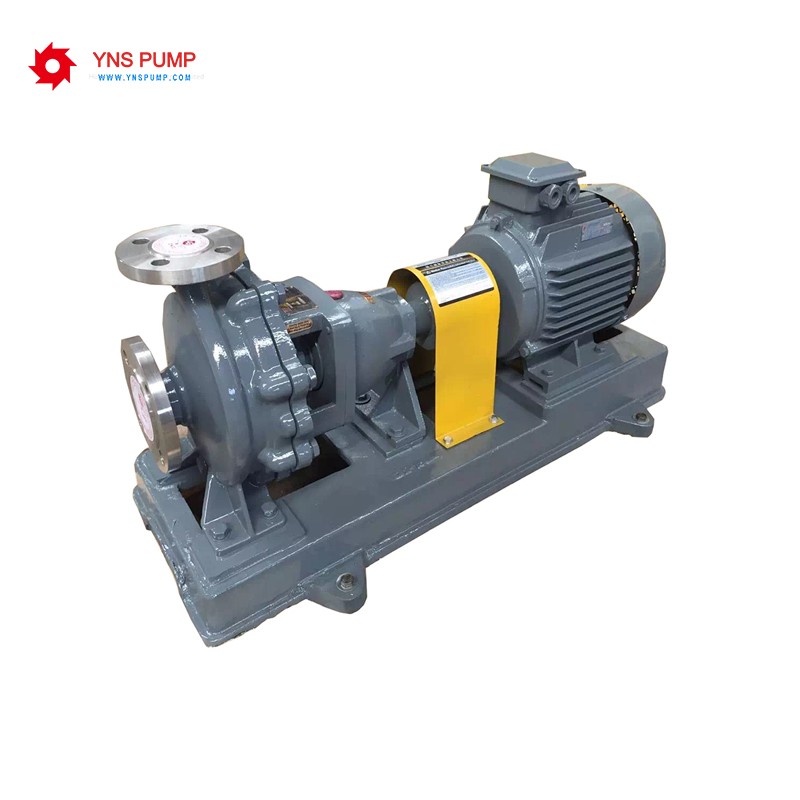

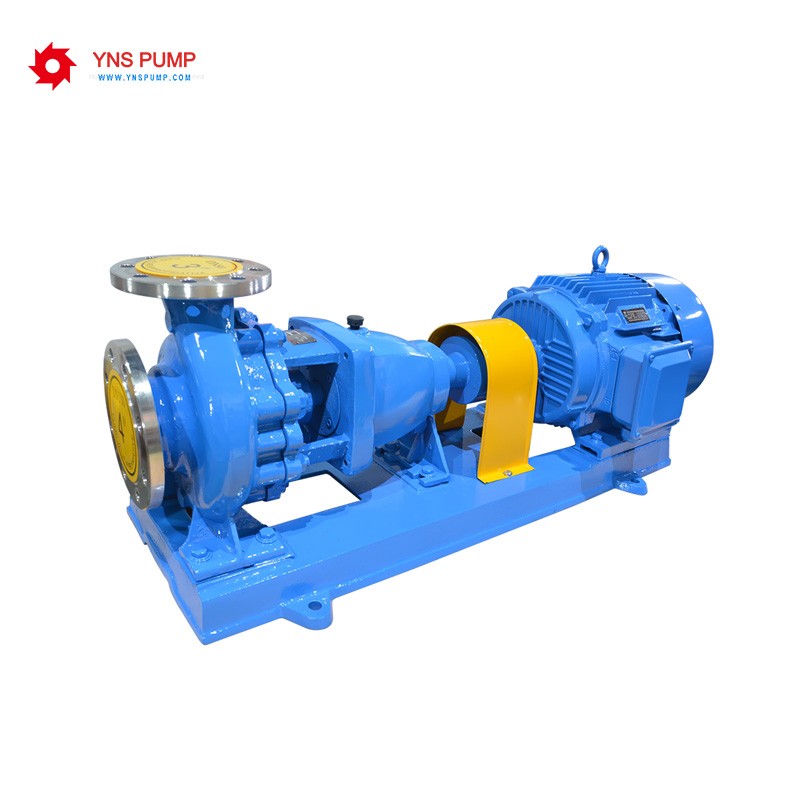

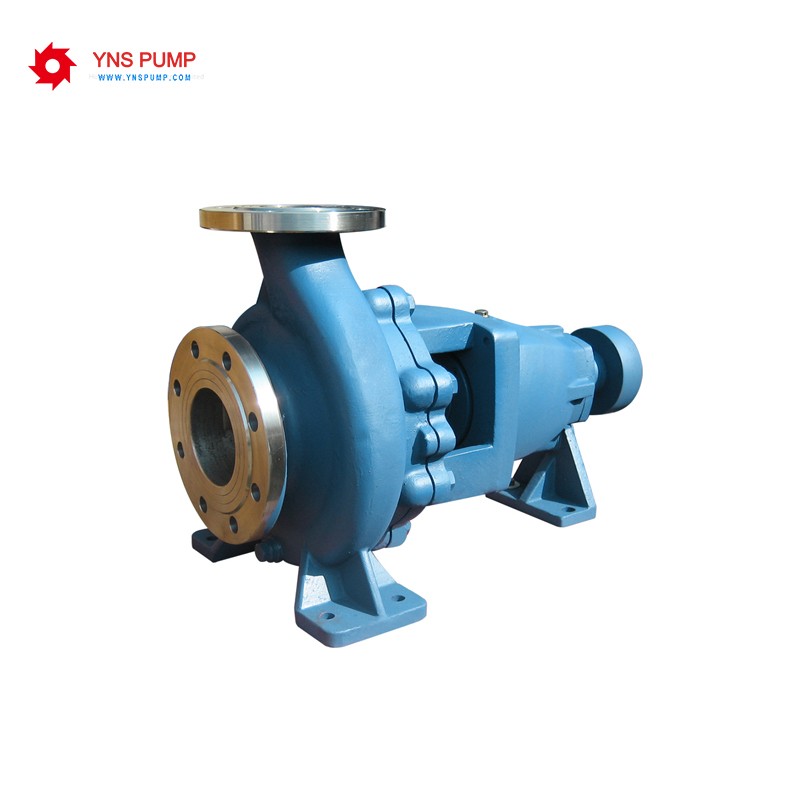

IH chemical pump is single stage single suction cantilever type centrifugal pump. The tag, the size of the performance rating point and equivalent adopt international standard ISO2858-1975 (E), is sure to replace F type corrosion of national mechanical industry upgrading of centrifugal pump products, Suitable for chemical, petroleum, metallurgy, power station, food, pharmaceuticals, synthetic fiber etc. To transport corrosive medium temperature in - 20 ℃ ~105℃ or physical and chemical properties similar to the medium of water.
Features
●The chemical centrifugal pump is designed voluntarily according to international standards of ISO2858, GB5662 AND DIN24256 by YANESS. The technical index and performance has already reached domestic and international advanced level of similar products.
●The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
●The shaft seal is built-in type single mechanical seal; the optional grinding sealing surface: silicon carbide, cemented carbide, etc; Clients also can choose double mechanical seal or external mechanical seal as required, to make sure satisfy the demand of delivering all kinds of medium and the working life of shaft seal.
●Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
Working Conditions
Applicable temperature: -20～350℃
NOTES: Please indicate during ordering if the proportion of medium or larger than 1.3mg/cm3. No idling running. No delivering medium with particles or crystalline.
Application
The stainless steel chemical pump widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery strong corrosive medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
