Description

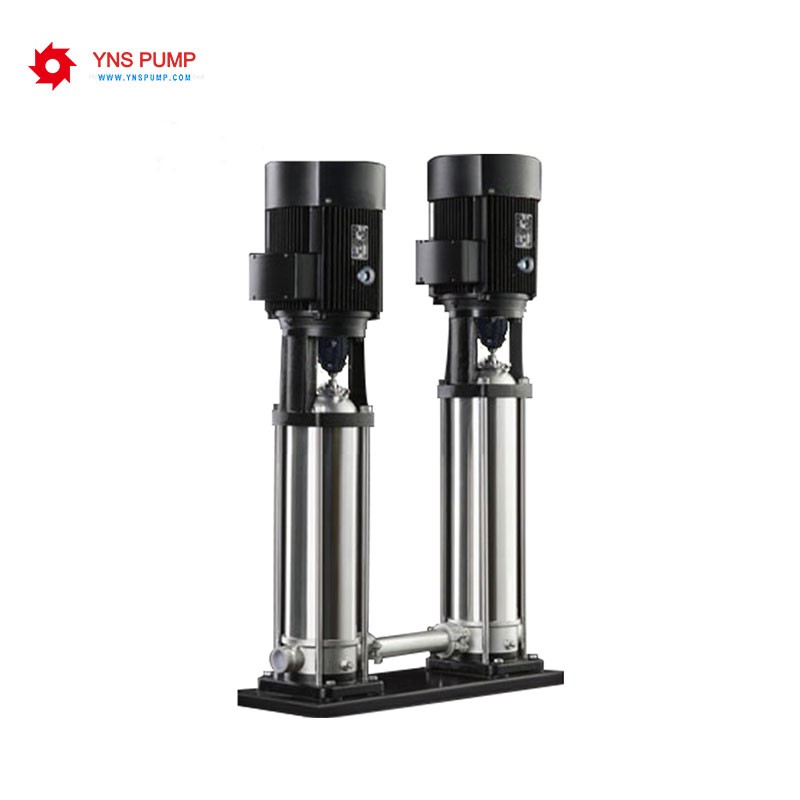

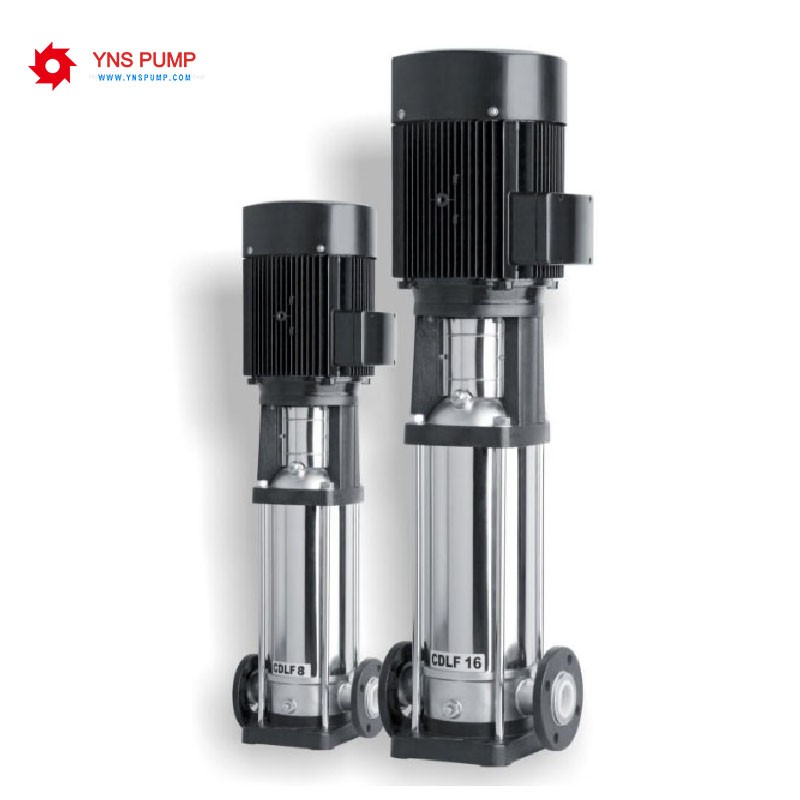

This kind of vertical Multistage Booster Pump, which is driven by a standard electric motor. The motor output shaft directly connects with pump shaft through a coupling. The pressure-resistant cylinder and flow passage componets are fixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same level. This kind of pump can be equipped with intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
Application

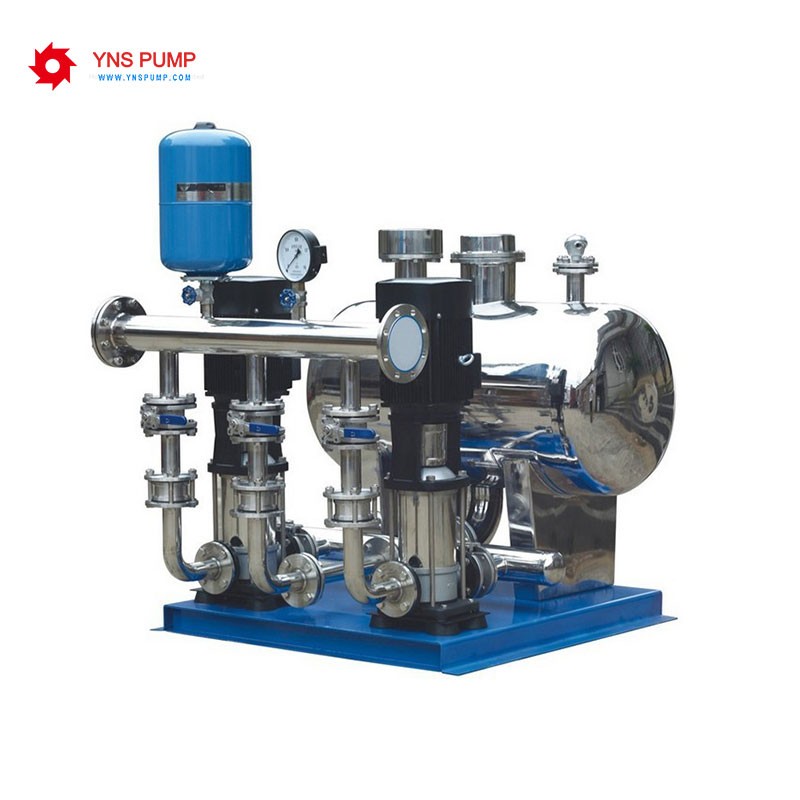

● Water supply: Water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
● Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
● Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
● Water treatment: Ultra filtration system, reverse osmosis system, distillation system, separator, swimming pool.
● Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.
Motor
● Full-enclosed air-blast two-pole standard motor
● Protection class: IP55
● Insulation class: F
● Standard voltage:
50Hz: 1 x 220~230 / 240V
3 x 200~220 / 346~380V
3 x 220~240 / 380~415V
3 x 380~415V
60Hz: 3 x 200~230 / 346~400V
3 x 220~255 / 380~440V
3 x 200-277 / 380~480V
Operation Condition
● Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
● Liquid temperature:
Normal temperature type: -15℃ ~+70℃
Hot water type: -15℃~+120℃
(Please comment when you order)
● Ambient temperature: Up to +40℃
● Altitude: Up to 1000 m
